Manufacturer
Corning
MPN
00D101EB49RA00F-P
Available
3
Condition
New

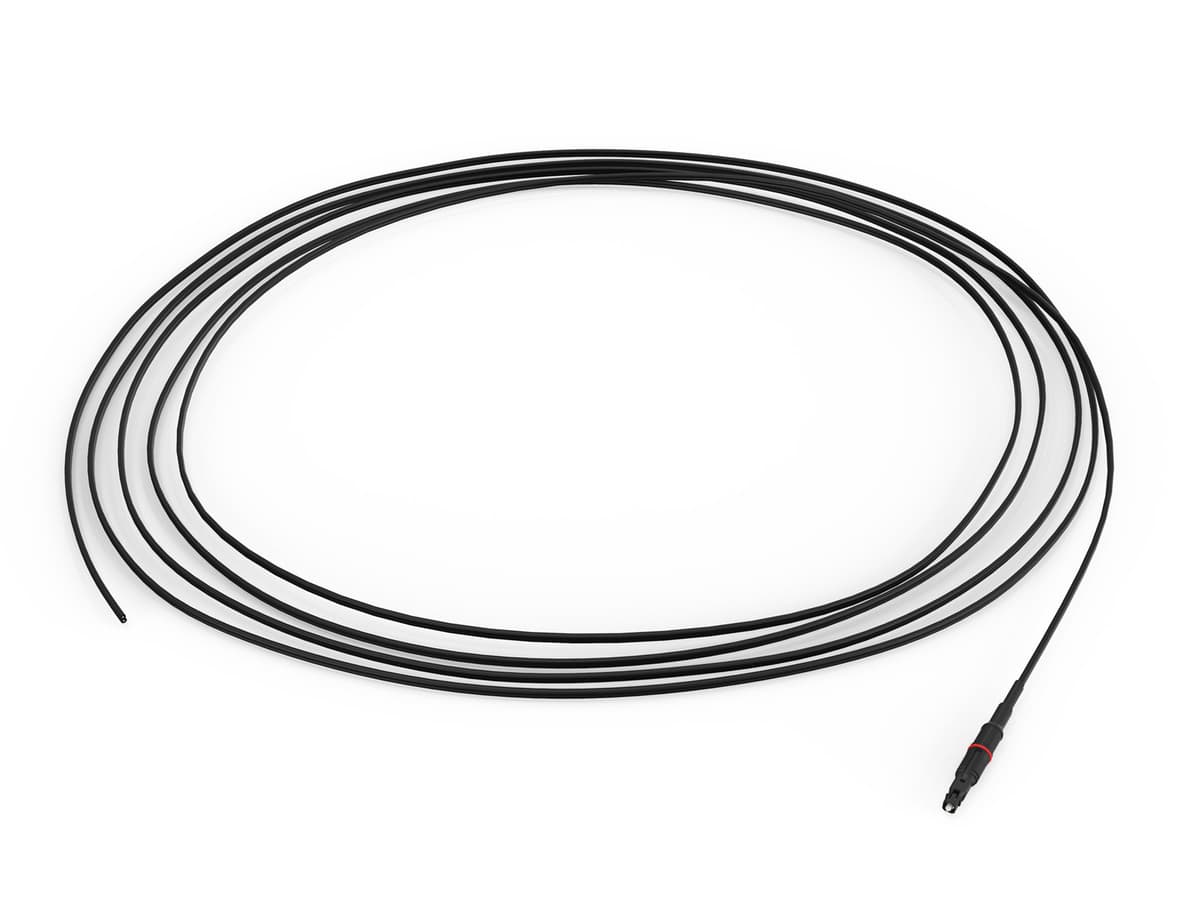

Corning 00D101EB49RA00F-P - Nocdda000729 Pigtail Pushloktm Apc, Smf-28e, 1f Roc 900 Drop, Dielectric, 1000.000 Feet Individual Packaging
The Corning 00D101EB49RA00F-P is a high-quality pigtail pushloktm APC (angled physical contact) connector designed for use with single-mode fiber optic cables. This pigtail features a 1-fiber ROC (return optical connector) 900 drop, making it ideal for use in telecommunications and data networking applications.
The pigtail is made with SMF-28e (standard single-mode fiber) and has a dielectric construction, ensuring excellent signal transmission and minimal interference. It is compatible with a variety of Corning products and can be easily integrated into existing fiber optic systems.
General Specifications | |
| Fiber Category | Single-mode (OS2) |
| Cable Assembly Type | Drop Assemblies |
| Environment | Outdoor |
| Application | Aerial |
| Cable Type | ROC dielectric drop |
| Assembly Insertion Loss | ≤ 0.15 dB |
| Pulling grip | None |
Environmental Conditions | |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F) |
Design | |
| Fiber Count | 1 |
Mechanical Specifications | |
| Cold Mate/Demate | -40 °C (-40 °F) |
| Axial Pull, Plug to Cable, Through the Dust Cap | 444.82 N (100 lb) in axial pull with load applied to the dust cap |
Optical Characteristics | |
| Fiber Code | E |
| Performance Option Code | 01 |
| Fiber Category | OS2 |
| Fiber Type | Single-mode (OS2) / 250 µm |
| Fiber Name | Single-mode (OS2) |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Compliance | ITU-T G.652.D |
Specifications - Connector A | |
| Reflectance, Typical | > 65 dB (optical return loss) |
| Insertion Loss, Typical | ≤ 0.15 dB |
| Connector Type | No connector |
Specifications - Connector B | |
| Reflectance, Typical | > 65 dB (optical return loss) |
| Insertion Loss, Typical | ≤ 0.15 dB |
| Connector Type | Pushlok |
Please refer to the following attachments for additional details on the product.
No specifications available.
